Introduction
Manhole covers are crucial elements of urban infrastructure, providing access
to underground utilities while enduring heavy traffic and environmental
conditions. Each type
of manhole cover,
whether cast iron, ductile iron,
FRP, concrete, or plastic, undergoes a meticulous manufacturing process
tailored to its material properties. Understanding these processes—from
casting techniques and molding to finishing touches—reveals the
craftsmanship and durability behind these essential urban fixtures. This
article explores the intricacies of manufacturing these covers, highlighting
their role in ensuring safety and accessibility in cities worldwide.
Cast Iron Manhole Cover Manufacturing Process
Cast iron is a preferred material for manhole covers due to its exceptional
strength, durability, and resistance to heavy loads and environmental wear.
Its ability to withstand substantial pressure and harsh conditions makes it
an ideal choice for urban infrastructure
1. Casting Techniques Used
i. Pattern Making
The manufacturing process begins with creating a pattern of the manhole
cover using wood, metal, or plastic. This pattern serves as a replica of
the final product.
ii. Molding
The pattern is placed in a sand mold, where sand is compacted around it
to form a cavity in the shape of the cover.
iii. Pouring
Molten cast iron, heated to extremely high temperatures, is carefully
poured into the sand mold cavity.
iv. Cooling and Removal
Once the iron has cooled and solidified, the sand mold is broken away to
reveal the rough cast iron cover.
2. Finishing and Quality Control Steps

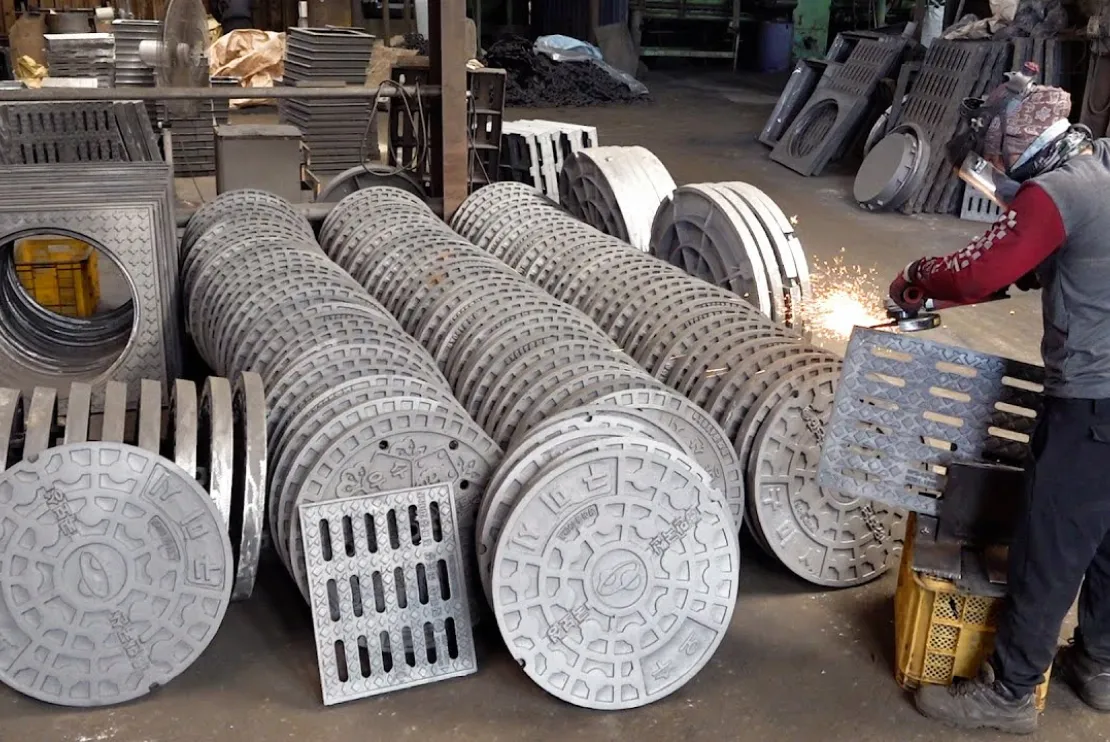

i. Grinding and Cleaning
The rough casting undergoes grinding to smooth out edges and surfaces,
ensuring the cover fits perfectly in its frame.
ii. Coating
To enhance durability and protect against corrosion, the cast iron cover
is coated with substances such as bitumen or epoxy.
iii. Quality Checks
Each cover is subjected to rigorous quality control tests to ensure it
meets industry standards for strength, dimensions, and safety. These
tests include load-bearing tests and dimensional accuracy checks.
Ductile Iron Manhole Cover Manufacturing Process
Ductile iron, also known as nodular cast iron, is celebrated for its
enhanced strength, flexibility, and impact resistance compared to
traditional cast iron. These properties make ductile iron an ideal material
for manhole covers, particularly in high-traffic urban areas. Nexus Cast
specializes in producing high-quality
ductile iron
manhole covers that meet
stringent industry standards.
1. Differences from the Cast Iron Process
i. Material Composition
Unlike cast iron, ductile iron incorporates small amounts of magnesium,
which transforms the graphite in the iron into a spheroidal shape. This
structural change enhances the material's flexibility and strength.
ii. Magnesium Treatment
During the melting process, magnesium is added to the molten iron,
creating the unique nodular graphite structure characteristic of ductile
iron.
2. Heat Treatment and Molding Methods
i. Melting and Magnesium Addition
Nexus Cast begins by melting high-quality iron in electric induction
furnaces. Once the iron reaches the required temperature, magnesium is
introduced to the molten iron to achieve the desired ductile properties.
ii. Molding
The treated molten iron is then poured into sand molds, which are
designed based on the precise specifications of the manhole cover. The
molds are carefully prepared to ensure accuracy and consistency in the
final product.
iii. Cooling and Solidification
After pouring, the molds are allowed to cool, and the ductile iron
solidifies into the shape of the manhole cover.
iv. Heat Treatment
To further enhance the mechanical properties, the solidified covers
undergo heat treatment processes, including annealing. This step
relieves internal stresses and improves the material's toughness.
3. Finishing and Quality Control Steps
i. Surface Finishing
The cooled manhole covers are extracted from the molds and subjected to
surface finishing processes, such as grinding and shot blasting, to
smooth out any imperfections and achieve the desired surface texture.
ii. Coating
To enhance corrosion resistance and durability, Nexus Cast applies
protective coatings, such as epoxy or bitumen, to the finished covers.
iii. Quality Assurance
Rigorous quality control measures are implemented at every stage of
production. Each manhole cover undergoes thorough inspections and
testing, including dimensional checks, load-bearing tests, and visual
inspections, to ensure compliance with industry standards and customer
specifications.
Nexus Cast's meticulous approach to manufacturing ductile iron manhole
covers ensures that each product not only meets but exceeds performance
expectations, providing reliable and durable solutions for urban
infrastructure.
FRP Manhole Cover Manufacturing Process
1. Composite Material Creation
i. Raw Materials
The manufacturing process begins with high-quality raw materials,
including fibers (such as glass, carbon, or aramid) and a polymer matrix
(resins like polyester, vinyl ester, or epoxy).
ii. Fiber Preparation
The fibres are prepared and aligned in the desired orientation to
achieve optimal strength and stiffness.
iii. Resin Mixing
The chosen resin is mixed with curing agents and other additives to form
the polymer matrix, which binds the fibers together and imparts the
desired mechanical properties.
2. Molding and Curing Techniques
i. Molding
The prepared fibers are placed into a mold that defines the shape of the
manhole cover. The mold is designed to ensure uniform distribution of
fibers and resin, which is crucial for achieving consistent quality.
ii. Resin Infusion
The mixed resin is infused into the mold, thoroughly saturating the
fibers. This process can be done using various techniques, such as
vacuum infusion or hand lay-up, depending on the specific requirements
and scale of production.
iii. Curing
Once the fibers are fully saturated with resin, the mold is subjected to
a controlled curing process. Curing involves applying heat and pressure
to the mold, which catalyzes the chemical reaction in the resin,
transforming it from a liquid to a solid state.
iv. Cooling and Demolding
After curing, the mold is allowed to cool, and the solidified FRP
manhole cover is carefully removed from the mold. The cooling process
ensures the cover retains its shape and structural integrity.
3. Finishing and Quality Control Steps
i. Trimming and Sanding
The edges and surfaces of the cured FRP cover are trimmed and sanded to
achieve a smooth finish and precise dimensions.
ii. Coating
To enhance the cover's durability and aesthetic appeal, protective
coatings or surface treatments may be applied.
iii. Quality Assurance
Each FRP manhole cover undergoes rigorous quality control checks,
including dimensional verification, load testing, and visual
inspections, to ensure it meets the required specifications and
standards.
Concrete Manhole Cover Manufacturing Process
1. Mixing and Reinforcement
i. Material Preparation
High-quality cement, aggregates, and water are mixed to create concrete.
For added strength, steel reinforcements or fibers are incorporated.
ii. Reinforcement
Steel bars or meshes are placed in the mold to provide additional
structural support and durability to the manhole cover.
2. Forming and Curing Processes
i. Forming
The concrete mix is poured into pre-designed molds that shape the
manhole cover. The molds are vibrated to eliminate air bubbles and
ensure even distribution.
ii. Curing
The molded covers are kept in controlled conditions to cure, allowing
the concrete to achieve maximum strength. This process can take several
days to weeks, depending on the concrete mix and environmental
conditions.
Plastic Manhole Cover Manufacturing Process
1. Injection Molding Process
i. Material Preparation
Thermoplastic polymers are heated until molten and mixed with any
necessary additives for enhanced properties.
ii. Injection Molding
The molten plastic is injected into a steel mold that shapes the manhole
cover. The mold is cooled to solidify the plastic into its final form.
iii. Demolding
Once cooled, the solidified cover is ejected from the mold, and ready
for finishing touches.
2. Quality Assurance in Plastic Covers
i. Inspection
Each plastic manhole cover undergoes thorough inspections for
dimensional accuracy, strength, and surface quality.
ii. Load Testing
Covers are tested to ensure they meet required load-bearing capacities
and safety standards.
iii. Final Checks
Any defects are corrected, and the covers are coated or treated for
additional durability and longevity before being approved for use.
Conclusion
Selecting the right manhole cover involves considering the specific
application and environmental factors. For high-traffic urban areas, the
strength and durability of cast iron or ductile iron covers are essential.
In corrosive environments or where weight is a concern, FRP or plastic
covers offer significant advantages. Concrete covers are a cost-effective
choice for many general applications, providing a balance of strength and
durability.
By understanding the unique benefits and manufacturing processes of each
type, you can make informed decisions that ensure safety, performance, and
longevity in your infrastructure projects.
