How to Choose and Install Cast Iron Pipe Fittings

Looking to choose and install cast iron pipe fittings? Look no further than Nexus Cast. With our expertise and range of high-quality products, we are here to guide you through the process.

When it comes to selecting the right cast iron pipe fittings, it's important to consider factors such as the size and type of fitting, as well as the intended application. Whether you need fittings for residential or commercial plumbing projects, we have you covered.

At Nexus Cast, we understand the importance of durability and reliability in pipe fittings. Our products are designed to withstand the test of time, offering long-lasting performance and peace of mind.

Installing cast iron pipe fittings may seem daunting, but with our step-by-step instructions and expert advice, you'll be able to complete the job confidently.

Choose Nexus Cast for all your cast iron pipe fitting needs and experience the difference in quality and service.

Benefits of using cast iron pipe fittings

Cast iron pipe fittings are a popular choice among homeowners, contractors, and plumbers due to their exceptional durability and reliability. One of the primary benefits of using cast iron pipe fittings is their longevity. Cast iron is an incredibly strong and resilient material that can withstand the test of time, making it an excellent choice for long-term plumbing projects. Unlike other materials, such as PVC or copper, cast iron fittings are less susceptible to corrosion, cracking, or degradation, ensuring that your plumbing system remains functional for decades to come.

Another significant advantage of cast iron pipe fittings is their superior resistance to high temperatures and pressure. This makes them an ideal choice for commercial and industrial applications, where the plumbing system is subjected to more demanding conditions. Cast iron fittings are also known for their ability to handle heavy loads and withstand the impact of heavy machinery or equipment, making them a popular choice for construction sites and industrial facilities.

Furthermore, cast iron pipe fittings are highly resistant to fire and heat, providing an added layer of safety and protection for your plumbing system. This is particularly important in areas with a high risk of fire or where the plumbing system is located in close proximity to heat sources, such as furnaces or boilers. The inherent fire resistance of cast iron fittings can help prevent the spread of fire and minimize the risk of costly and potentially devastating damage to your property.

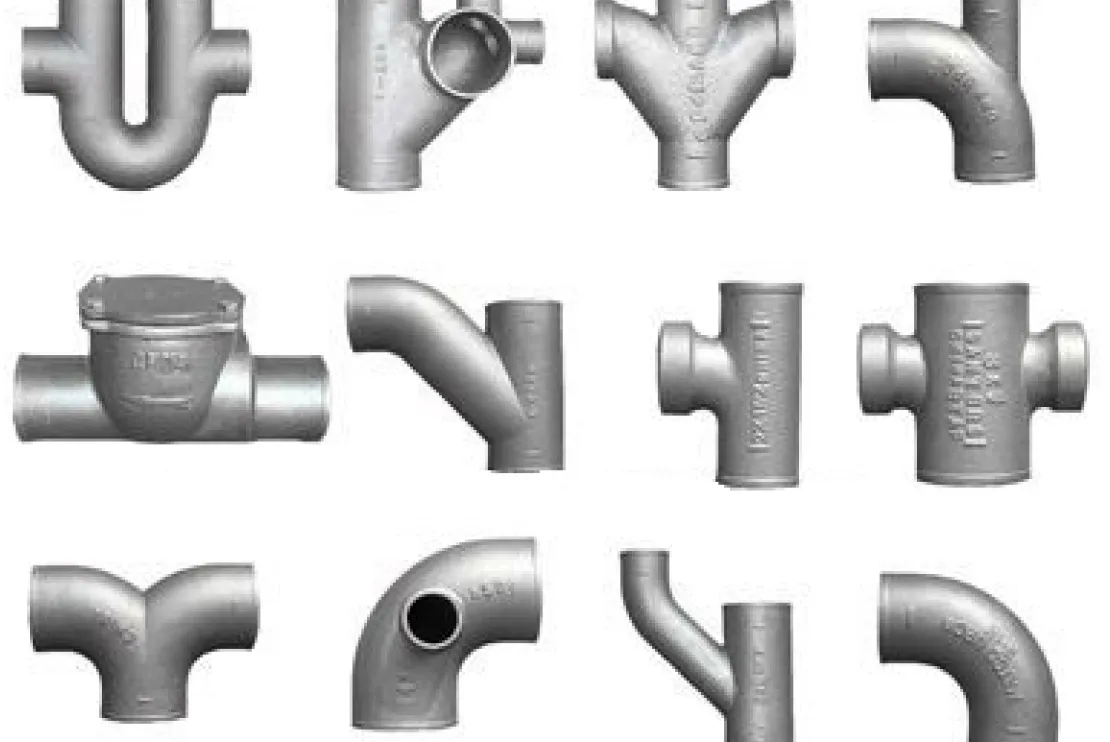

Different types of cast iron pipe fittings

Cast iron pipe fittings come in a variety of shapes and sizes to accommodate different plumbing needs and applications.

One of the most common types of cast iron fittings is the elbow, which is used to change the direction of the pipe. Elbows come in different angles, such as 45 degrees or 90 degrees, to allow for smooth and efficient flow of liquids or gases through the plumbing system.

Another common type of cast iron pipe fitting is the tee, which is used to create a branching or T-shaped connection in the plumbing system. Tees are often used to split the flow of liquids or gases, allowing for the addition of new pipes or the connection of different components, such as valves or fixtures.

In addition, cast iron pipe fittings also include couplings which are used to connect two pieces of pipe together. Couplings come in different styles, such as plain, threaded, or flanged, to accommodate different pipe materials and sizes.

Other types of cast iron pipe fittings include reducers, which are used to transition between pipes of different sizes, and caps or plugs, which are used to seal the end of a pipe.

Read our previous blog article to learn more about types of pipe fittings.

Factors to consider when choosing cast iron pipe fittings

When it comes to selecting the right cast iron pipe fittings for your project, there are several important factors to consider.

1. Size of Pipe

One of the primary factors is the size of the pipe that the fittings will be used with. Cast iron pipe fittings are available in a wide range of standard sizes, from small residential applications to large-scale commercial and industrial projects. It's essential to ensure that the fittings you choose are compatible with the diameter of the pipes in your plumbing system to ensure a proper and secure fit.

2. Type of Application

Another important factor to consider is the type of application for which the cast iron pipe fittings will be used. Different applications may require different types of fittings, such as those designed for high-pressure or high-temperature environments. For example, in industrial settings, you may need fittings that are specifically engineered to withstand the rigors of heavy machinery and equipment, while in residential applications, you may prioritize fittings that are more aesthetically pleasing and suitable for visible plumbing.

3. Requirements of Cast Iron Pipe Fittings

The intended use of the cast iron pipe fittings is also a crucial factor to consider. Are you using them for a new construction project, a renovation, or a repair? Depending on the specific requirements of your project, you may need to choose fittings that are compatible with the existing plumbing system or that meet specific building codes and regulations. It's essential to carefully assess the needs of your project and select fittings that will provide the best performance and long-term reliability.

4. Cost of Cast iron Pipe Fittings

Finally, the cost of the cast iron pipe fittings is also an important consideration. While it's essential to prioritize quality and durability, you'll also want to ensure that the fittings you choose fit within your budget. At Nexus Cast, we offer a wide range of high-quality cast iron pipe fittings at competitive prices, making it easier for you to find the perfect solution for your project.

Tools and materials needed for installing cast iron pipe fittings

Installing cast iron pipe fittings requires a specific set of tools and materials to ensure a successful and durable installation.

1. Pipe Wrench

One of the most essential tools is a pipe wrench, which is used to grip and turn the fittings during the installation process. Pipe wrenches come in a variety of sizes to accommodate different pipe diameters, so it's important to select the appropriate size for your project.

2. Basin Wrench

Basin wrench, which is used to tighten or loosen fittings in tight spaces, such as behind a sink or toilet. Basin wrenches are designed with a long, slender handle and a adjustable head that can reach into confined areas

3. Hacksaw or Pipe Cutter

Another important tool for installing cast iron pipe fittings is a hacksaw or pipe cutter, which is used to cut the pipes to the desired length. Depending on the size and material of the pipes, you may also need a power tool, such as a reciprocating saw or a pipe cutting tool, to make clean and precise cuts.

4. Sealant or Lubricant

In terms of materials, you'll need a sealant or lubricant to apply to the threads or surfaces of the fittings. As mentioned earlier, this helps to create a tight and secure connection and prevents leaks. Common sealants used for cast iron pipe fittings include thread tape, pipe dope, and specialized gasket materials.

5. Other Tools

Finally, you may also need additional tools and materials, such as a hammer, a level, and a tape measure, to ensure that the fittings are properly aligned and positioned within the plumbing system.

By having the right tools and materials on hand, you can ensure a smooth and successful installation process for your cast iron pipe fittings.

A step-by-step guide to installing cast iron pipe fittings

Installing cast iron pipe fittings can be a straightforward process, but it's important to follow the proper steps to ensure a secure and reliable connection. Here's a step-by-step guide to help you through the process:

1. Measure and cut the pipe

Determine the length of pipe needed and use a hacksaw or pipe cutter to make a clean, square cut.

2. Clean the pipe and fitting surfaces

Use a wire brush or sandpaper to remove any dirt, rust, or debris from the pipe and fitting surfaces. This will help ensure a tight, secure connection.

3. Apply the sealant or lubricant

Wrap the threads of the fitting with thread tape or apply a thin layer of pipe dope to the threads or surfaces. This will help create a watertight seal and prevent leaks.

4. Assemble the fittings

Carefully align the fitting with the pipe and use a pipe wrench to tighten the connection. Make sure the fitting is positioned correctly and that the pipe is fully inserted into the fitting.

5. Check for proper alignment

Use a level or other tool to ensure that the fitting is properly aligned with the rest of the plumbing system. Make any necessary adjustments to ensure a straight and level installation.

6. Secure the fitting

Once the fitting is properly aligned, use a pipe wrench or basin wrench to tighten the connection further, ensuring a secure and leak-proof seal.

7. Test the system

After the installation is complete, turn on the water or gas supply and check for any leaks or issues. If everything is functioning properly, you're ready to move on to the next step of your plumbing project.

Remember, it's important to take your time and follow the proper safety precautions when working with cast iron pipe fittings. If you're unsure about any aspect of the installation process, don't hesitate to consult with a professional plumber or the team at Nexus Cast for guidance and support.

Common mistakes to avoid during the installation process

While installing cast iron pipe fittings can be a relatively straightforward process, there are a few common mistakes that homeowners and DIYers often make that can lead to issues down the line. One of the most common mistakes is failing to properly prepare the pipe and fitting surfaces before installation. Neglecting to clean off any dirt, rust, or debris can prevent a tight, secure connection and increase the risk of leaks or other problems.

Another common mistake is using the wrong type of sealant or lubricant. While thread tape and pipe dope are generally effective for cast iron pipe fittings, using the wrong product or applying it incorrectly can compromise the integrity of the connection. It's important to carefully follow the manufacturer's instructions and use the recommended sealant or lubricant for your specific application.

Improper alignment is another common issue that can arise during the installation process. If the cast iron pipe fittings are not properly aligned with the rest of the plumbing system, it can lead to stress on the connections and increase the risk of leaks or other failures. Taking the time to carefully position and secure the fittings is essential for ensuring a successful installation.

Finally, one of the most critical mistakes to avoid is failing to test the system after installation. It's important to turn on the water or gas supply and carefully inspect the connections for any signs of leakage or other issues. If any problems are detected, it's crucial to address them immediately to prevent further damage or potential safety hazards.

By being mindful of these common mistakes and taking the necessary precautions, you can help ensure a successful and long-lasting installation of your cast iron pipe fittings. If you're ever unsure about any aspect of the installation process, don't hesitate to consult with a professional plumber or the team at Nexus Cast for guidance and support

Maintenance and care tips for cast iron pipe fittings

Proper maintenance and care are essential for ensuring the long-term performance and reliability of your cast iron pipe fittings. One of the most important maintenance tasks is regularly inspecting the fittings for any signs of wear, corrosion, or damage. This can include checking for cracks, leaks, or other issues that could compromise the integrity of the plumbing system.

If you do notice any issues with your cast iron pipe fittings, it's important to address them promptly to prevent further damage or potential safety hazards. Depending on the nature of the problem, you may need to replace the affected fitting or take other corrective measures to restore the system to full functionality.

In addition to regular inspections, it's also important to keep the cast iron pipe fittings clean and free of debris. This can help prevent the buildup of mineral deposits or other contaminants that can interfere with the performance of the fittings. Regularly flushing the system or using a specialized cleaning solution can help maintain the optimal performance of your cast iron pipe fittings.

Another important maintenance task is ensuring that the cast iron pipe fittings are properly supported and secured within the plumbing system. Over time, the weight of the pipes and the pressure of the fluids flowing through them can cause the fittings to shift or become loosened. Regularly checking the connections and making any necessary adjustments can help prevent leaks or other issues.

Finally, it's important to be mindful of any environmental factors that could impact the performance of your cast iron pipe fittings. For example, if the plumbing system is located in an area with high humidity or exposure to harsh chemicals, you may need to take additional precautions to protect the fittings from corrosion or other types of damage. By following these maintenance and care tips, you can help ensure the long-term durability and reliability of your cast iron pipe fittings.

Conclusion

In conclusion, choosing and installing cast iron pipe fittings can be a straightforward and rewarding process, especially with the right guidance and support. At Nexus Cast, we are committed to providing our customers with high-quality cast iron pipe fittings and the expert advice they need to tackle any plumbing project with confidence.

Whether you're working on a new construction project, a renovation, or a repair, cast iron pipe fittings offer a durable and reliable solution that can withstand the demands of your plumbing system. With their exceptional strength, fire resistance, and corrosion resistance, these fittings are an excellent choice for a wide range of applications, from residential to commercial and industrial settings.

By carefully considering factors such as pipe size, application, and budget, you can select the perfect cast iron pipe fittings for your needs. With our step-by-step installation guide and expert tips, you'll be able to complete the job with ease and confidence, ensuring a secure and long-lasting connection.

Remember, proper maintenance and care are essential for ensuring the continued performance and reliability of your cast iron pipe fittings. By regularly inspecting, cleaning, and securing the fittings, you can help extend their lifespan and prevent costly repairs or replacements down the line.
