Ductile Iron Casting: Process, Grades and Key Properties

1. Melting and Alloy Preparation

The ductile iron casting process begins with melting pig iron and scrap iron in an electric furnace. During this stage, alloys, particularly magnesium, are added to the molten iron. Magnesium helps convert the graphite from flake form into spherical nodules, which is essential for achieving ductile iron's unique properties. The molten metal is carefully monitored to ensure the correct chemical composition and temperature.

2. Mold Creation and Pouring

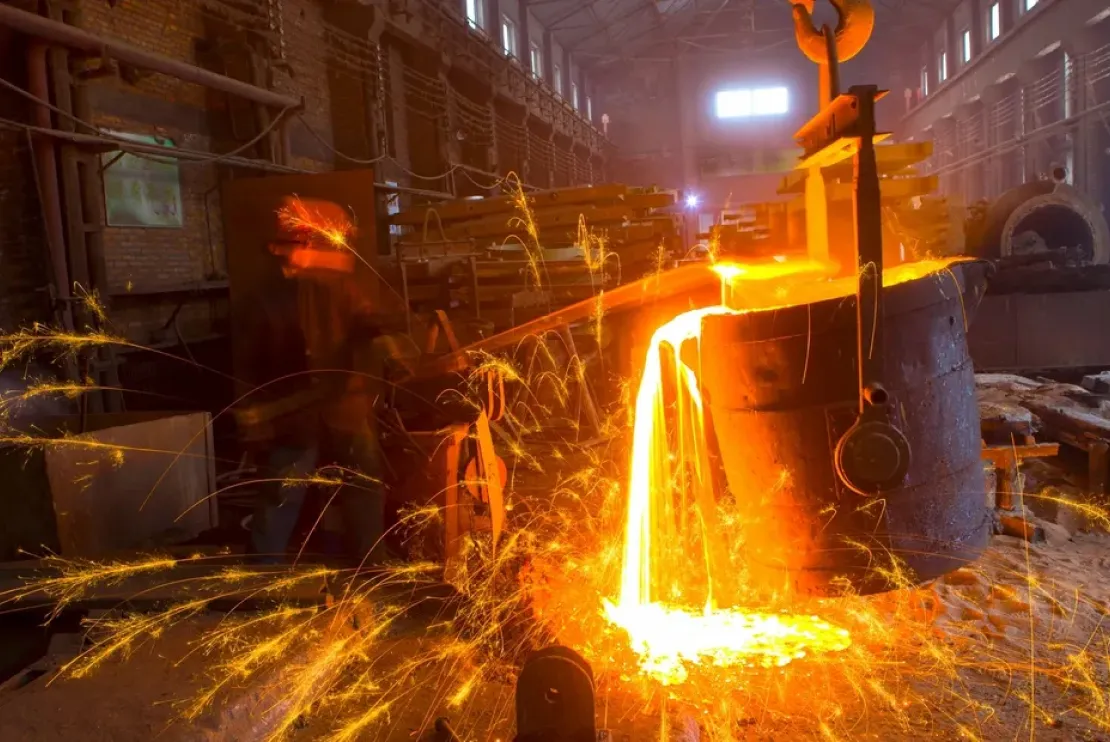

Next, the molten iron is poured into molds. These molds, which can be made from sand, metal, or other materials, are designed to shape the castings according to the required specifications. The mold creation process can involve various techniques, including sand casting for larger, complex shapes and metal molds for high-precision applications. Once the molds are prepared, the molten iron is poured into them, filling the cavity and taking the desired shape.

3. Cooling and Solidification

After pouring, the molten iron is allowed to cool and solidify. This cooling process is carefully controlled to ensure uniform solidification and to minimize defects such as shrinkage or porosity. The rate of cooling can affect the final properties of the casting, so it is managed based on the size and complexity of the part. Typically, cooling can take several hours, depending on the casting's thickness and design.

4. Key Equipment and Technologies Used

The ductile iron casting process involves several key pieces of equipment and technologies:
i. Electric Furnaces: Used for melting the iron and alloying with magnesium.
ii. Molding Equipment: Includes sand molds, metal molds, and core-making machines.
iii. Pouring Systems: Ensure precise and controlled pouring of molten iron into molds.
iv. Cooling Systems: Manage the rate of cooling to achieve the desired properties.

5. Quality Control Measures

To ensure the quality of ductile iron castings, various quality control measures are employed:
i. Dimensional Inspection: Verifies that the castings meet specified dimensions and tolerances.
ii. Surface Testing: Checks for surface defects such as cracks or inclusions.
iii. Mechanical Testing: Assesses properties like tensile strength, elongation, and hardness to confirm that the casting meets performance requirements.
iv. Non-Destructive Testing: Techniques such as ultrasonic and radiographic tests detect internal flaws without damaging the casting.

These steps and measures collectively ensure that ductile iron castings are produced to high standards, meeting the demands of various applications while maintaining reliability and performance.

1. Grade 60-40-18

Characteristics: This grade has a minimum tensile strength of 60,000 psi, elongation of 40%, and a hardness of 18 Rockwell. It offers good strength and wear resistance.
Applications: Used in automotive parts, gearboxes, and structural components.

2. Grade 65-45-12

Characteristics: With a tensile strength of 65,000 psi, elongation of 45%, and a hardness of 12 Rockwell, this grade provides enhanced strength and ductility.
Applications: Ideal for heavy-duty machinery, pipe fittings, and industrial components.

3. Grade 80-55-06

Characteristics: This grade has a tensile strength of 80,000 psi, elongation of 55%, and a hardness of 6 Rockwell. It is known for its high strength and toughness.
Applications: Commonly used in applications requiring high-impact resistance and durability, such as mining and construction equipment.

Choosing the Right Grade

Selecting the appropriate ductile iron grade depends on factors such as the required strength, impact resistance, and application. Understanding these characteristics helps in making informed decisions and ensuring the performance of the final product.

1. Mechanical Properties

i. Strength: Ductile iron offers high tensile strength, making it suitable for heavy-load applications.
ii. Ductility: It exhibits excellent elongation and deformation capabilities without breaking, which enhances its ability to absorb impact.
iii. Hardness: The material maintains good hardness, ensuring durability and wear resistance.

2. Physical Properties

i. Density: Ductile iron has a density of about 7.0 to 7.8 g/cm³, which balances strength and weight.
ii. Thermal Conductivity: It has moderate thermal conductivity, which helps in heat dissipation during operation.

3. Benefits Over Other Material

Ductile iron's combination of strength, ductility, and machinability makes it a superior choice compared to traditional cast iron and some steel. It provides a cost-effective solution without compromising on performance.
