Are you embarking on a plumbing project and feeling overwhelmed by the
different types of pipe fittings available? Fret not! In this article, we
will guide you through the world of pipe fittings and help you understand
the various options at your disposal.
From elbows to tees, couplings to adapters, pipe fittings play a critical
role in connecting pipes and directing the flow of fluids within a plumbing
system. It's essential to choose the right fittings to ensure a leak-free
and efficient plumbing installation.
In this comprehensive guide, we will explore the various types of pipe
fittings, their functions, and how they are used in different plumbing
applications. Whether you are a DIY enthusiast or a professional plumber,
this article will equip you with the knowledge to make informed decisions
for your plumbing projects.
So, let's dive in and explore the world of pipe fittings together. By the
end of this article, you'll have a solid understanding of the different
types of pipe fittings available and how to select the right ones for your
specific plumbing needs. Let's get started!

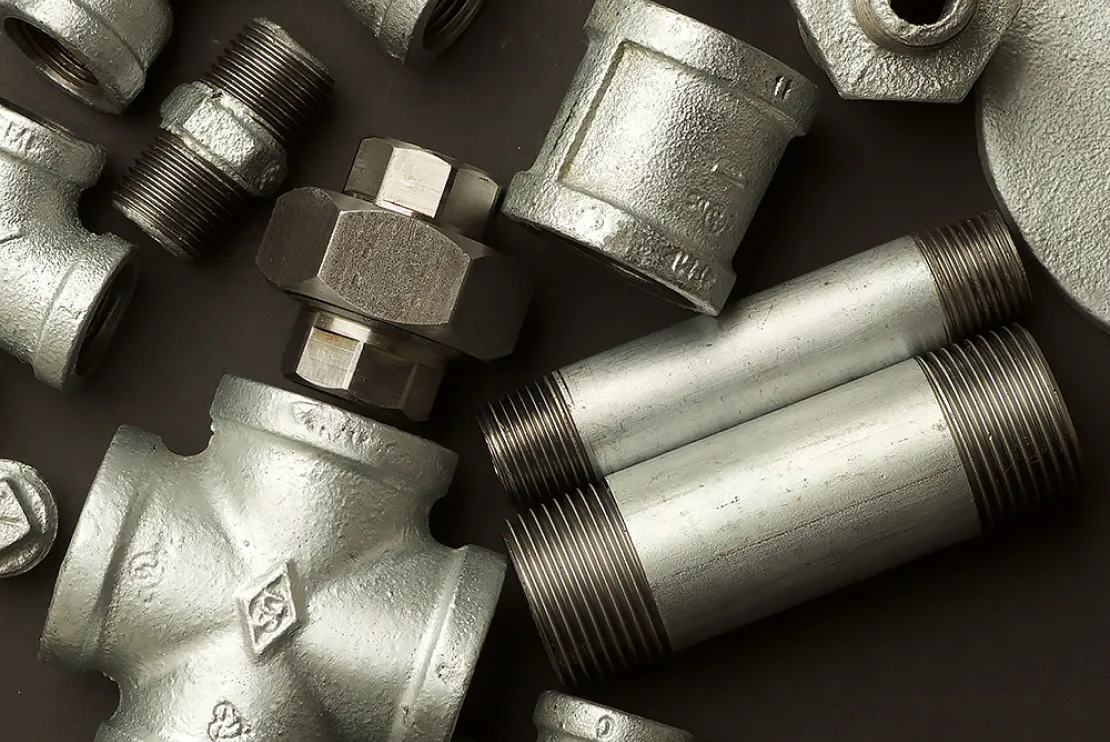

Different Types of Pipe Fittings for Your Plumbing Projects
1. Elbow fittings and their uses

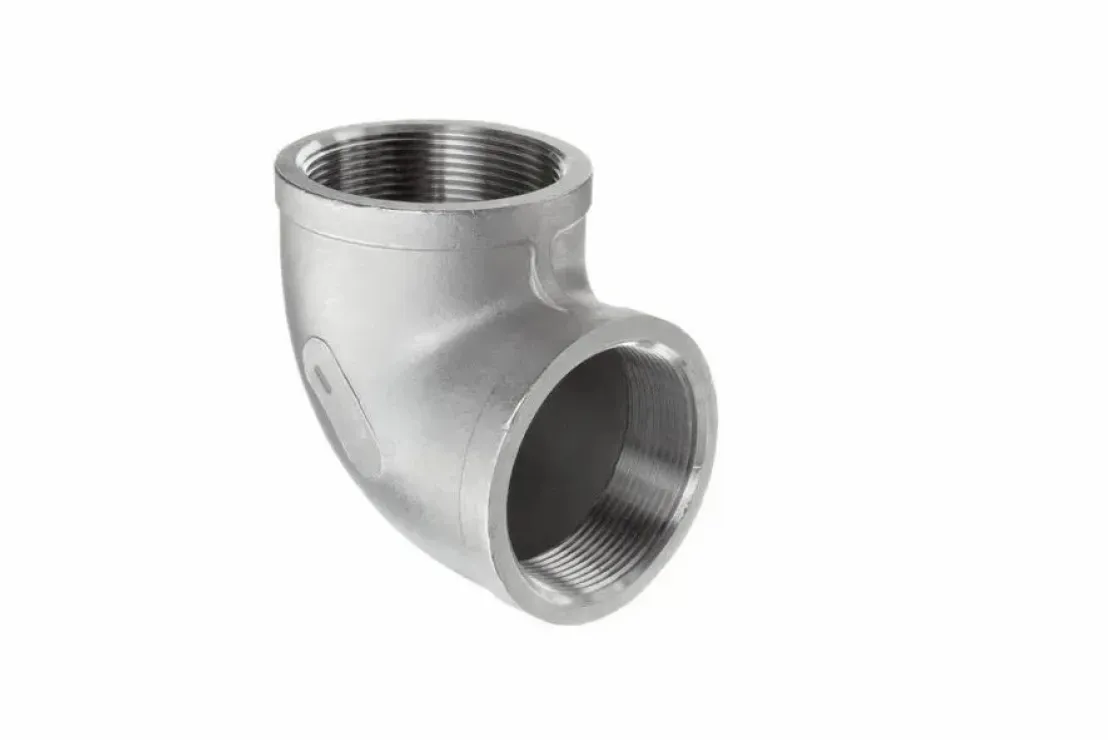

Elbow fittings are one of the most commonly used pipe fittings in plumbing
systems. They are designed to change the direction of a pipe, typically at a
90-degree or 45-degree angle, allowing you to navigate around corners,
obstacles, and tight spaces. Elbows come in a variety of materials,
including copper, PVC, and stainless steel, making them suitable for a wide
range of plumbing applications.
The 90-degree elbow is the most common type of elbow fitting, used to create
sharp turns in the piping system. These elbows are often used in tight
spaces, such as behind walls or under sinks, where a straight run of pipe is
not possible. The 45-degree elbow, on the other hand, provides a more
gradual change in direction, making it ideal for longer runs of pipe where a
sharper turn is not required.
In addition to standard elbows, there are also specialized elbow fittings,
such as street elbows and long-radius elbows. Street elbows feature a
shorter length, making them suitable for tight spaces, while long-radius
elbows provide a more gradual change in direction, reducing the stress on
the pipe and minimizing the risk of leaks. These specialized elbows are
often used in applications where space is limited or where the flow of
fluids needs to be optimized.
2. Tee fittings and their uses

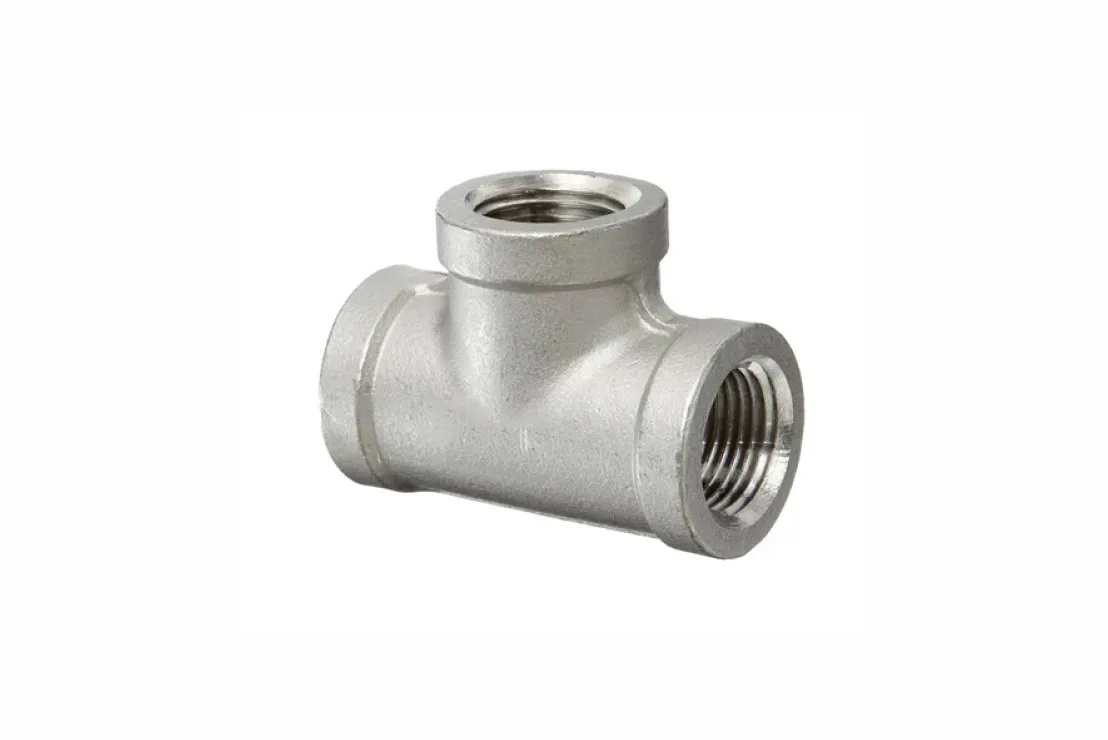

Tee fittings are another essential component of plumbing systems, used to
create a branching or T-shaped connection. These fittings allow you to
divert the flow of fluids to different locations, such as adding a branch
line for a sink, shower, or washing machine. Tee fittings come in a variety
of materials, including copper, PVC, and stainless steel, and are available
in different sizes to accommodate various pipe diameters.
The standard tee fitting features three openings: one for the main pipe run
and two for the branching connections. These fittings can be used to create
a wide range of configurations, such as a straight-through tee, where the
flow continues in a straight line, or a side-outlet tee, where the flow is
diverted to a perpendicular branch.
In addition to standard tee fittings, there are also specialized variations,
such as reducing tees and side-outlet tees. Reducing tees are used to
connect pipes of different sizes, ensuring a smooth transition and
maintaining the integrity of the plumbing system. Side-outlet tees, on the
other hand, feature a branching connection that is offset from the center,
making them ideal for tight spaces or when you need to divert the flow of
fluids at an angle.
3. Coupling fittings and their uses

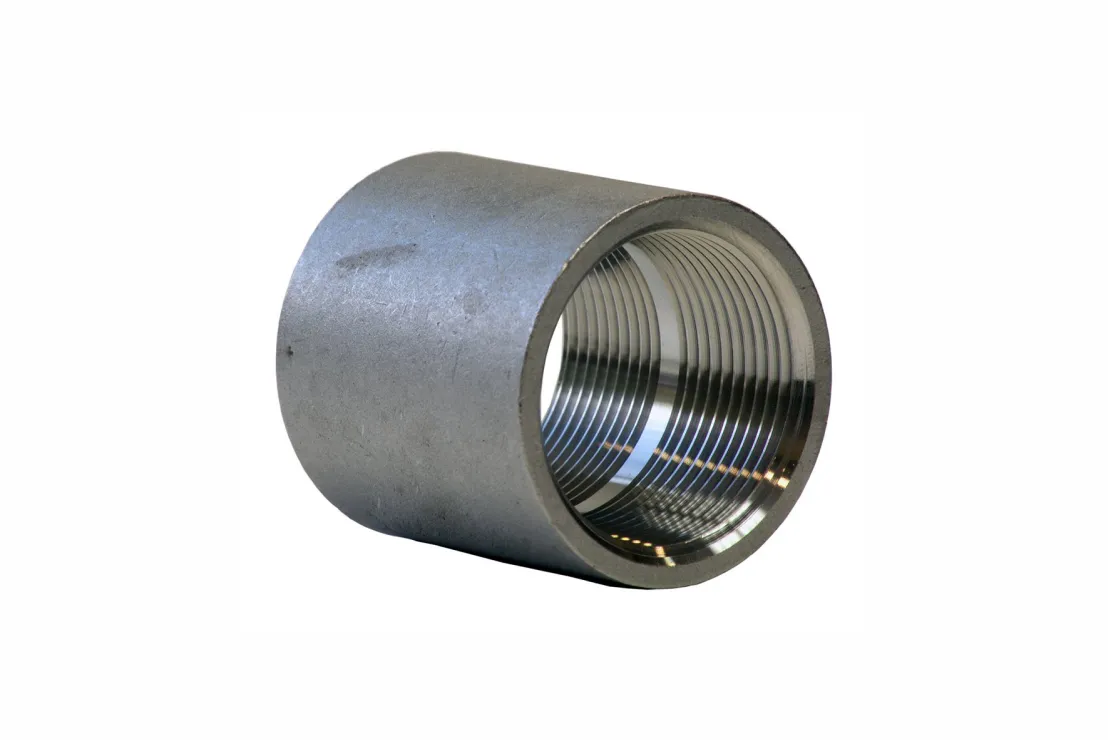

Coupling fittings are used to join two pipes of the same size, creating a
seamless and secure connection. These fittings are essential for connecting
straight runs of pipe, as well as for repairing or replacing sections of a
plumbing system. Couplings come in a variety of materials, including copper,
PVC, and stainless steel, and are available in different sizes to
accommodate various pipe diameters.
The standard coupling fitting features two openings, one on each end,
designed to fit snugly over the ends of the pipes being joined. These
fittings can be used to connect pipes of the same material or to transition
between different pipe materials, such as connecting a copper pipe to a PVC
pipe.
In addition to standard couplings, there are also specialized variations,
such as transition couplings and compression couplings. Transition couplings
are used to connect pipes of different materials or sizes, ensuring a smooth
transition and maintaining the integrity of the plumbing system. Compression
couplings, on the other hand, use a compression nut and ferrule to create a
secure, leak-proof connection without the need for soldering or glueing.
4. Union fittings and their uses

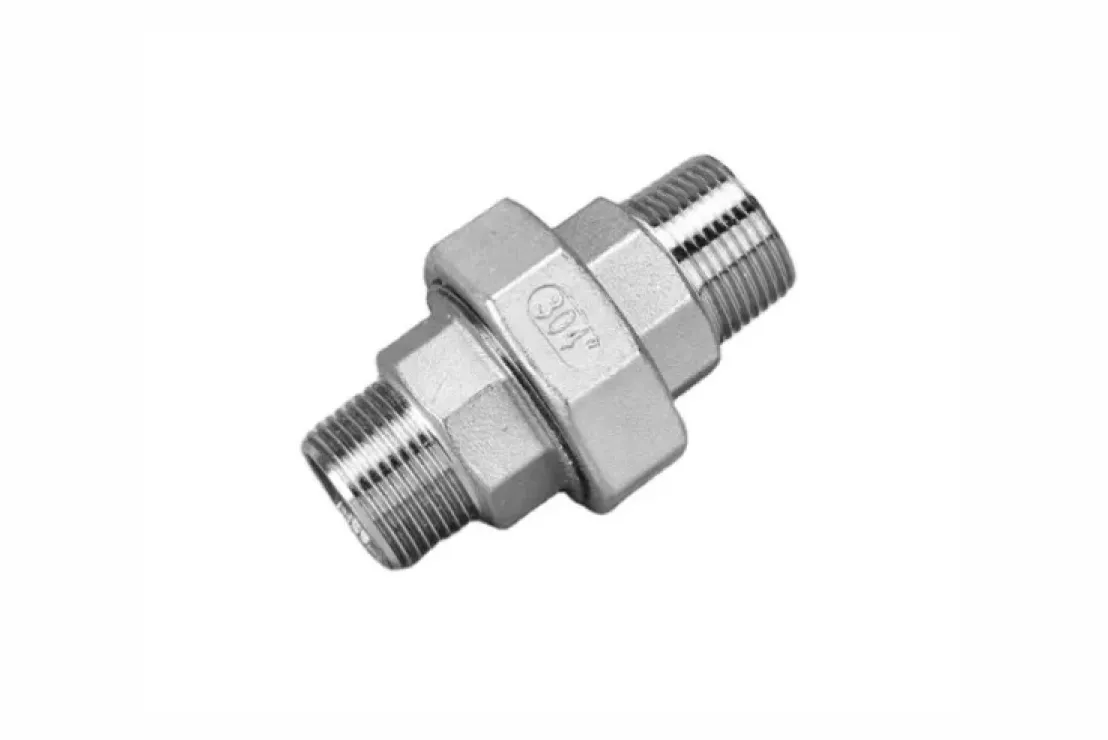

Union fittings are a unique type of pipe fitting that provides a removable
connection, allowing for easy disassembly of the plumbing system. These
fittings are particularly useful for maintenance and repair work, as they
make it easier to access and service various components of the plumbing
system without having to completely dismantle the entire system.
Union fittings consist of three main components: two threaded ends that
connect to the pipes, and a central nut that holds the fitting together.
When the nut is loosened, the two threaded ends can be separated, allowing
for the removal of a section of pipe or the replacement of a component, such
as a valve or a fixture.
Union fittings are available in a variety of materials, including copper,
PVC, and stainless steel, and are suitable for use in a wide range of
plumbing applications, from water supply lines to drainage systems. They are
often used in locations where regular access to the plumbing system is
required, such as behind sinks, toilets, or water heaters.
5. Cross fittings and their uses

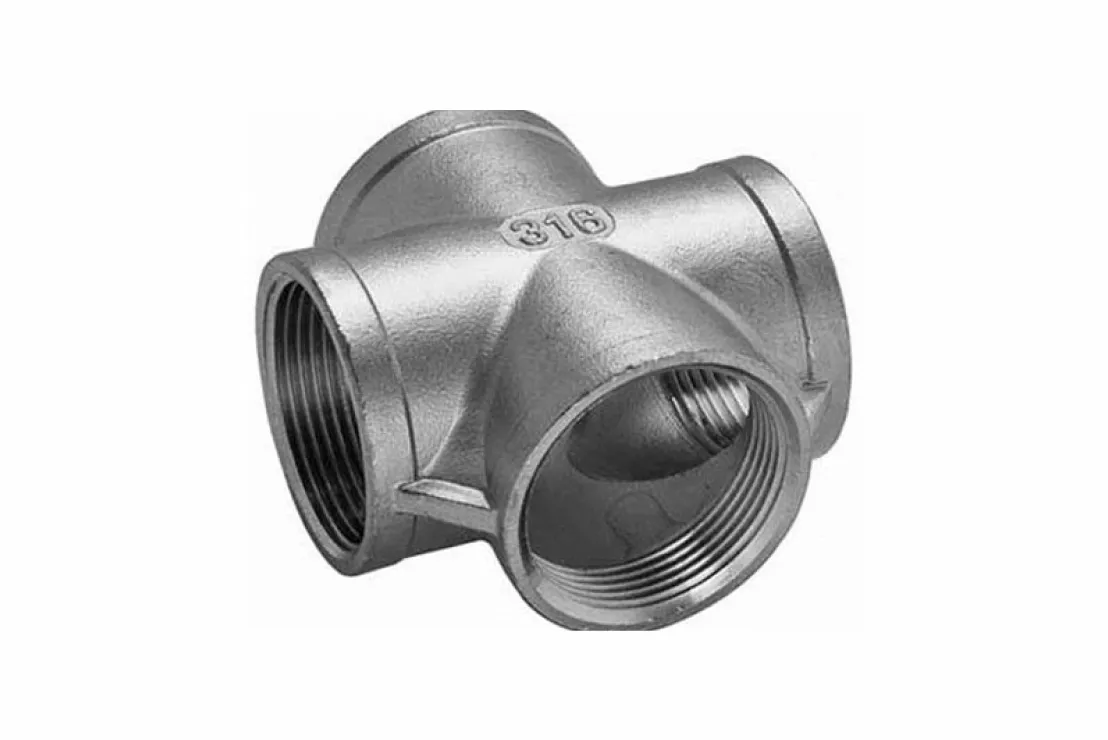

Cross fittings are a specialized type of pipe fitting used to create a
four-way intersection in a plumbing system. These fittings feature four
openings, allowing for multiple branching connections to be made, making
them ideal for applications where you need to divert the flow of fluids in
multiple directions.
Cross fittings are commonly used in applications such as manifold systems,
where a single water supply line is divided into multiple branch lines to
serve multiple fixtures or appliances. They can also be used in more complex
plumbing systems, such as those found in commercial or industrial settings,
where the ability to control and direct the flow of fluids is crucial.
Like other pipe fittings, cross fittings are available in a variety of
materials, including copper, PVC, and stainless steel, to accommodate
different plumbing applications and environmental conditions. They can also
be found in different sizes to match the diameter of the pipes being used in
the plumbing system.
6. Reducer fittings and their uses
Reducer fittings are used to connect pipes of different sizes, ensuring a
smooth transition and maintaining the integrity of the plumbing system.
These fittings are essential when transitioning between pipes of varying
diameters, such as when connecting a larger supply line to a smaller fixture
or appliance.
Reducer fittings come in two main types: concentric reducers and eccentric
reducers. Concentric reducers feature a symmetrical reduction in diameter,
while eccentric reducers have an offset reduction, allowing for a more
gradual transition between the pipes.
The choice between a concentric or eccentric reducer fitting will depend on
the specific requirements of the plumbing system. Concentric reducers are
often used in applications where the flow of fluids needs to be optimized,
while eccentric reducers are better suited for situations where maintaining
a level pipe run is more important, such as in drainage systems
7. Cap fittings and their uses

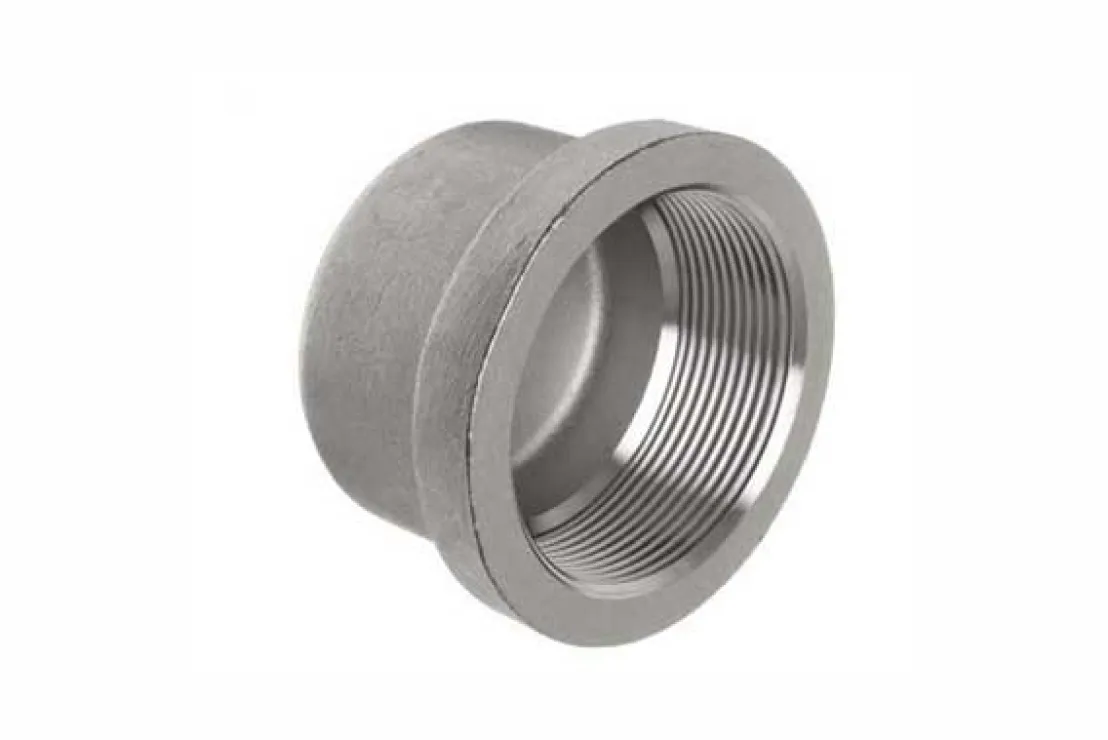

Cap fittings are a simple yet essential type of pipe fitting, used to seal
the end of a pipe or to temporarily close off an opening in a plumbing
system. These fittings are commonly used to cap off unused pipe openings,
protect the ends of pipes during installation, or temporarily block a pipe
run during maintenance or repair work.
Cap fittings come in a variety of materials, including copper, PVC, and
stainless steel, and are available in different sizes to accommodate various
pipe diameters. They are typically threaded or slip-on, allowing for easy
installation and removal as needed.
In addition to standard cap fittings, there are also specialized variations,
such as plug fittings and test plugs. Plug fittings are used to permanently
seal the end of a pipe, while test plugs are designed to temporarily block a
pipe opening for testing or inspection purposes. These specialized cap
fittings play a crucial role in ensuring the proper functioning and safety
of a plumbing system.
Conclusion: Choosing the right pipe fittings for your plumbing projects
Navigating the world of pipe fittings can be a daunting task, especially for
those new to plumbing projects. However, by understanding the different
types of pipe fittings and their specific functions, you can make informed
decisions and ensure the success of your plumbing endeavors.
Whether you're a DIY enthusiast or a professional plumber, it's essential to
carefully consider the requirements of your plumbing system and select the
appropriate pipe fittings to meet those needs. Factors such as the pipe
material, size, and the intended use of the plumbing system will all play a
role in determining the most suitable fittings for the job.
By familiarizing yourself with the common types of pipe fittings, their
uses, and their unique characteristics, you'll be better equipped to tackle
a wide range of plumbing projects, from simple repairs to complex
installations. Remember, the right pipe fittings can make all the difference
in ensuring a leak-free, efficient, and long-lasting plumbing system.
So, the next time you embark on a plumbing project, take the time to explore
the world of pipe fittings and choose the ones that best suit your needs.
With the knowledge and confidence gained from this article, you'll be well
on your way to successful and satisfying plumbing projects.
